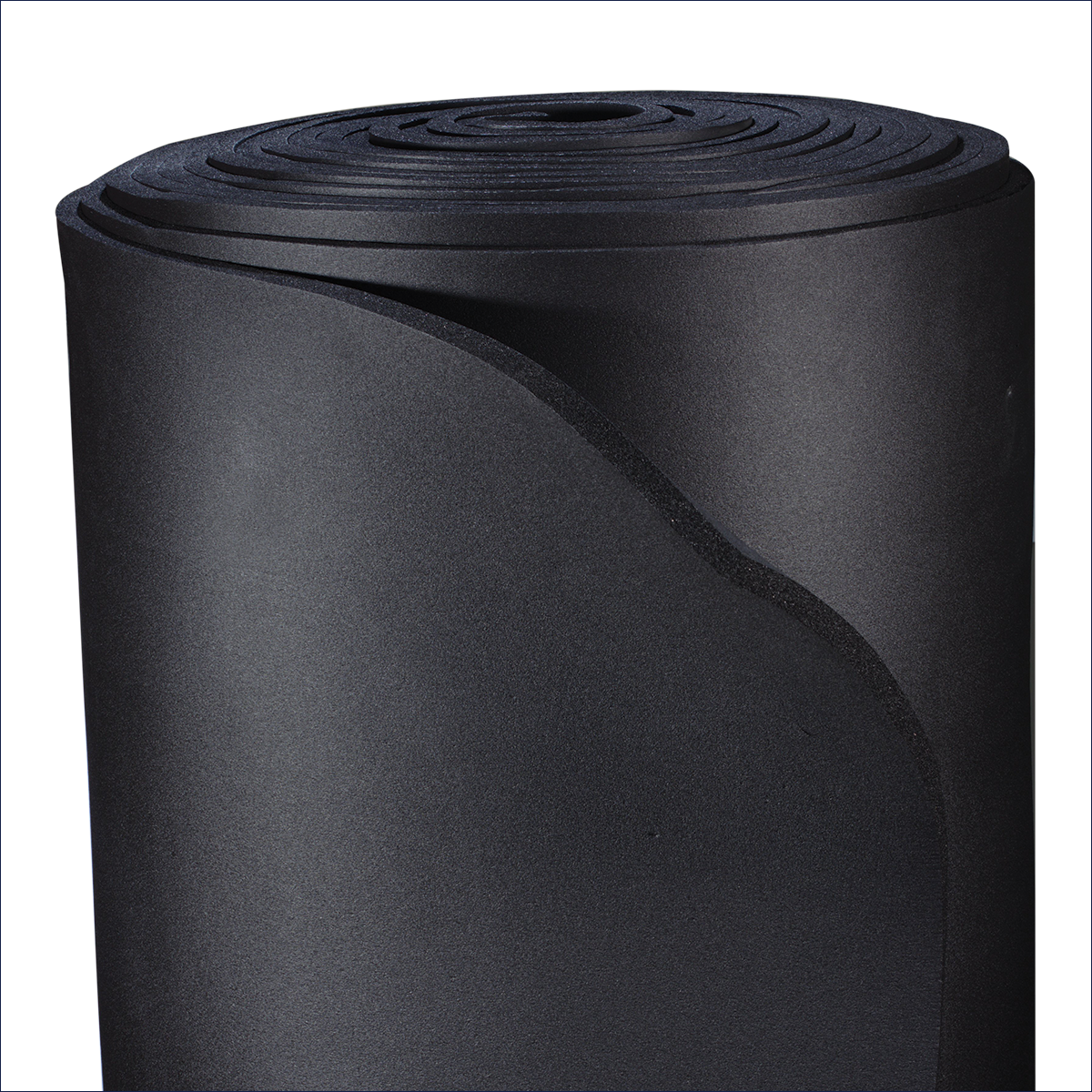

Flexicell NBR

NBR is a flexible closed-cell thermal insulation for condensation control and reducing thermal losses in a variety of applications. NBR offers an excellent thermal efficiency of 0.032 w/m.K @ 23°C and zero water vapour permeability. Flexicell NBR also conforms to the extensive fire & smoke requirements of transit vehicles (EN45545-2).

Category:

Applications

  • Large diameter pipes (sheets may be used where pre-made tubing is less appropriate)
  • Ventilation ducts
  • Tanks and reservoirs
  • Engine rooms (to improve acoustic performance)
  • Fittings (valves, flanges, bends)

Sizing and Availability

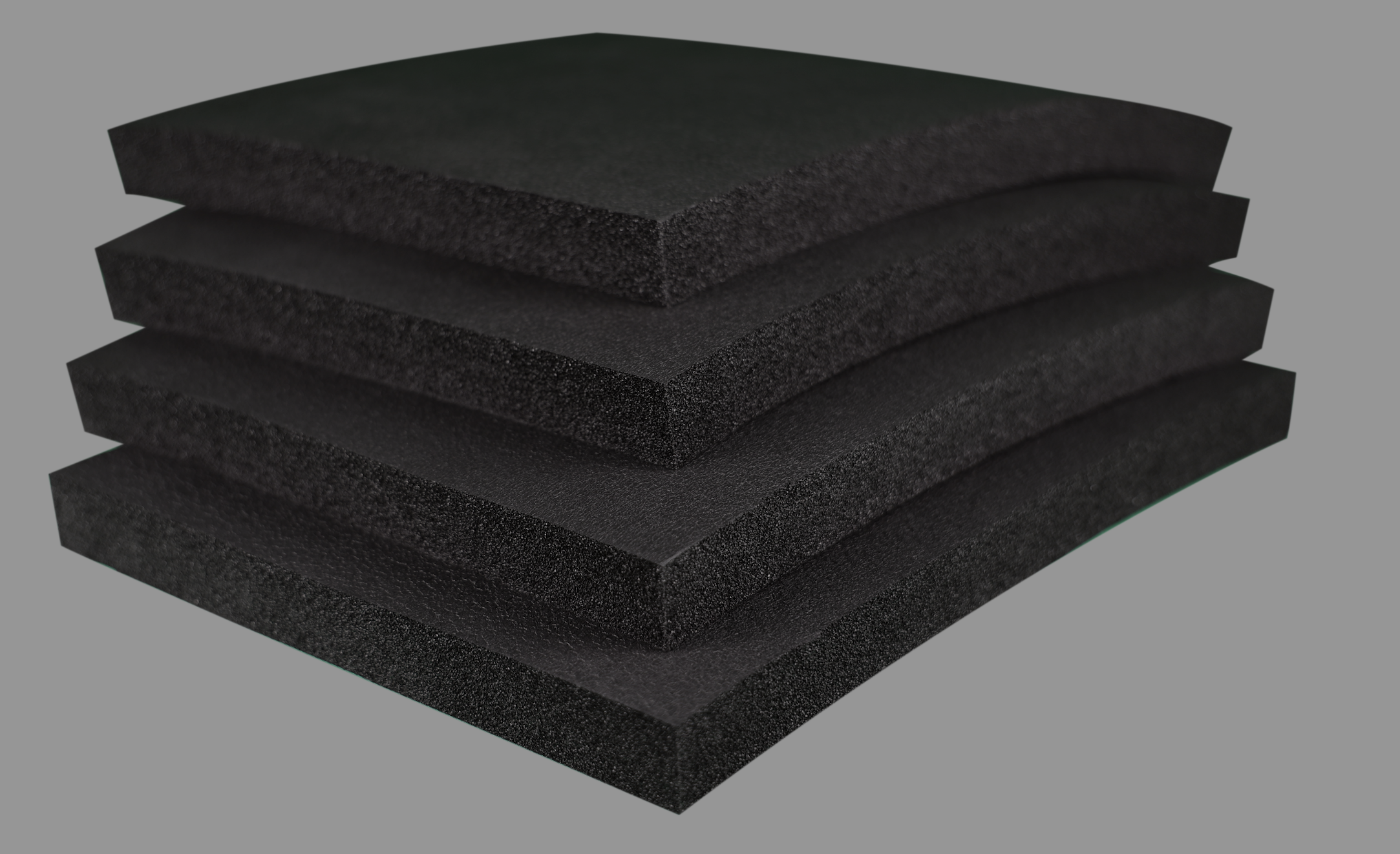

Thicknesses 1.6mm, 3mm, 6mm, 9mm, 13mm, 16mm, 19mm, 25mm, 32mm, 40mm & 50mm in sheets or rolls.

Available with Self-adhesive, Aluminium foil, Cladding, Glass Cloth

Data

Flexicell NBR R Values

FLEXICELL data sheet-NBR-AUS-08FEB24
